JAM CHANNEL & FITTING SYSTEMS

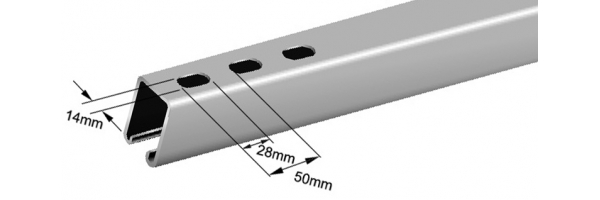

Channel DR62S
Material Standard | BS 1449 Part2:1983 |
---|---|
Specification | BS 6946:1988 |
Finishing | hot dip galvanized to ISO 1461:1999 |
Material (Item No.) | 4006041623 (3 meters long) 4006041626 (6 meters long) |
Span or colunm unsupported Height in mm |
Uniform Load at 175 N/mm2 Stress. kg |
Deflection in mm at 175 N/mm2 |
Uniform Load at Max. Deflcc. Of 1/200th. Span .kg |
Uniform Load at Max. Deflcc. Of 1/360th. Span .kg |
Max. Load of column loaded @ Centroid kg |
Max. Load of column loaded @slot face kg |
500 | - | - | - | - | 6564 | 3604 |
1000 | 759 | 2.67 | - | - | 3256 | 2047 |
1500 | 506 | 6.02 | - | 350 | 1674 | 1554 |
2000 | 379 | 10.70 | 354 | 196 | 1083 | 794 |
2500 | 303 | 16.73 | 226 | 126 | 792 | 626 |
3000 | 253 | 24.09 | 157 | 87 | 621 | 514 |
