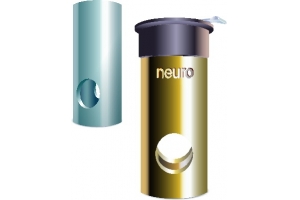

NEURO LIFTING SOCKET
neuro lifting socket offers extremely good load bearing quality especially on angled loads.
neuro socket require additional reinforcement to be channeled through the cross hole for transferring the force into the concrete.
Manufactured from either high grade precision steel tube zinc plated or special stainless steel tube.
The thread is finished in RD. (threaded end with metric gradient).
Description |
Item No. zinc plated |
Item No. hot dip galvanized |
SWL kg |

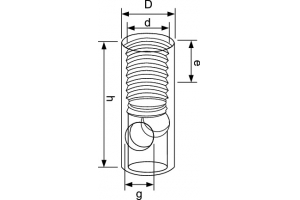

Dimensions / mm |
Packing per box |
|||
D | g | h | e | |||||
Socket Rd 12 | 2030112040 | 2030412040 | 500 | 15 | 8 | 40 | 22 | 100 |
Socket Rd 14 | 2030114047 | 2030414047 | 800 | 18 | 10.5 | 47 | 25 | 100 |
Socket Rd 16 | 2030116054 | 2030416054 | 1200 | 21 | 13 | 54 | 27 | 100 |
Socket Rd 18 | 2030118065 | 2030418065 | 1600 | 24 | 13 | 65 | 34 | 100 |
Socket Rd 20 | 2030120069 | 2030420069 | 2000 | 28 | 15.5 | 69 | 35 | 100 |
Socket Rd 24 | 2030124078 | 2030424078 | 2500 | 31 | 18 | 78 | 43 | 100 |
Socket Rd 30 | 2030130103 | 2030430103 | 4000 | 40 | 22.5 | 103 | 56 | 50 |
Socket Rd 36 | 2030136125 | 2030436125 | 6300 | 47 | 27.5 | 125 | 68 | 25 |
Socket Rd 42 | 2030142145 | 2030422145 | 8000 | 54 | 32 | 145 | 80 | 20 |
Socket Rd 52 | 2030152195 | 2030452195 | 12500 | 67.2 | 40 | 165 | 100 | 10 |
SWL: Safe Work Load
Stainless Steel on request
