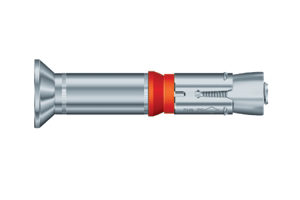

Highload Anchor SZ-SK (Zinc Plated)

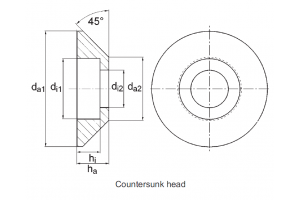

Steel, zinc plated; with countersunk head
ETA approval for cracked and
non-cracked concrete
Description
The Highload Anchor SZ is a torque controlled expansion anchor system, designed for fast through fastening in cracked and noncracked concrete, available in three versions. The SZ is shock
approved.
Applications
Medium to heavy duty anchorings of base plates, supports, pallet racks, brackets, railings in cracked and non-cracked concrete.
Range of concrete quality: C20/25 - C50/60

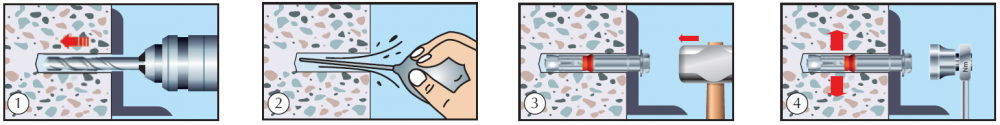

Installation of MKT SZ Steel Highload Anchor
1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Using a hammer, tap the anchor through the fixture into the hole until the bolt head is firmly seated against the fixture.
4. Tighten the anchor to the specified torque. Refer to approval and listing for design and building code compliance.
