JAM BOLTS

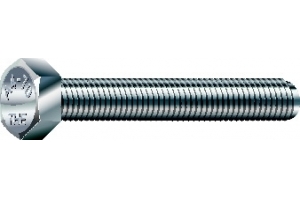

Stainless Steel Hexagon Head Bolt (Fully threaded)

Ordering example : A4-70 stainless steel M8 x 20mm fully threaded hexagon head bolt (item no.: 4032608020)
Stainless Steel Grade A2-70 / A4-70 / A4-80
Material Standard ISO 3506 Part 1:1997
Specification DIN 933 (fully threaded)
Material (Item No.) A2-70 (40316) A4-70 (40326) A4-80 (40322)

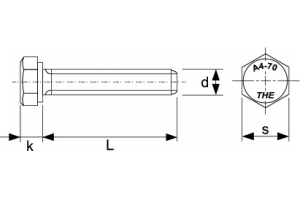

    • d (diameter)SS Hex Set Screw
    • Thread Pitch / mm
    • k (head height) / mm
    • s (head width) / mm
    • M5
    • 0.8
    • 3.5
    • 8
    • M6
    • 1
    • 4
    • 10
    • M8
    • 1.25
    • 5.3
    • 13
    • M10
    • 1.5
    • 6.4
    • 17
    • M12
    • 1.75
    • 7.5
    • 19
    • M16
    • 2
    • 10
    • 24
    • M20
    • 2.5
    • 12.5
    • 30
    • M24
    • 3
    • 15
    • 36
    • M27
    • 3
    • 17
    • 41
    • M30
    • 3.5
    • 18.7
    • 46
