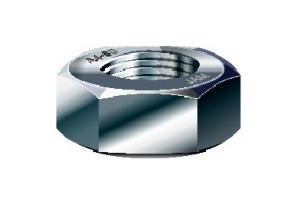

Stainless Steel Hexagon Nut

Ordering example : A4-80 stainless steel M20 hexagon nut (item no.: 4041820000)
Stainless Steel Grade A2-70 / A4-80
Material Standard ISO 3506 Part 2:1997
Specification DIN 934
Material (Item No.) A2-70 (40413) A4-80 (40418)

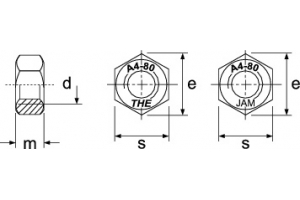

    • d (diameter) SS Nuts _Washers
    • Thread Pitch/mm
    • s (max. width across flats)/mm
    • s (min. width across flats)/mm
    • e (min. width across corners)/mm
    • m (max. thickness)/mm
    • m (min. thickness)/mm
    • M39
    • 4
    • 60
    • 58.8
    • 66.44
    • 31
    • 29.4
    • M36
    • 4
    • 55
    • 53.8
    • 60.79
    • 29
    • 27.4
    • M33
    • 3.5
    • 50
    • 49
    • 55.37
    • 26
    • 24.7
    • M30
    • 3.5
    • 46
    • 45
    • 50.85
    • 24
    • 22.7
    • M27
    • 3
    • 41
    • 40
    • 45.2
    • 22
    • 20.7
    • M24
    • 3
    • 36
    • 35
    • 39.55
    • 19
    • 17.7
    • M22
    • 2.5
    • 32
    • 31
    • 35.03
    • 18
    • 16.9
    • M20
    • 2.5
    • 30
    • 29.16
    • 32.95
    • 16
    • 14.9
    • M18
    • 2.5
    • 27
    • 26.16
    • 29.56
    • 15
    • 14.3
    • M16
    • 2
    • 24
    • 23.67
    • 26.75
    • 13
    • 12.3
    • M14
    • 2
    • 22
    • 21.67
    • 24.49
    • 11
    • 10.3
    • M12
    • 1.75
    • 19
    • 18.67
    • 21.1
    • 10
    • 9.64
    • M10
    • 1.5
    • 17
    • 16.73
    • 18.9
    • 8
    • 7.64
