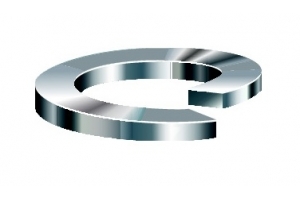

Spring Washer Spring Washer

Ordering example : A4 stainless steel M10 spring washer (item no.: 4054210000)
Stainless Steel Grade A2(304) / A4(316)
Material Standard BS 6105:1981
Specification DIN 127B
Material (Item No.) A2 stainless steel (40532) A4 stainless steel (40542)

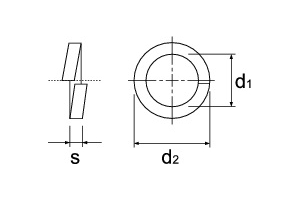

    • d (diameter) SS Spring Washers
    • d1(max. inside diameter)/mm
    • d1(min. inside diameter)/mm
    • d2(max. outside diameter)/mm
    • s (max. thickness)/mm
    • s (min. thickness)/mm
    • M10
    • 10.7
    • 10.2
    • 18.1
    • 2.35
    • 2.05
    • M12
    • 12.7
    • 12.2
    • 21.1
    • 2.65
    • 2.35
    • M14
    • 14.7
    • 14.2
    • 24.1
    • 3.15
    • 2.85
    • M16
    • 17
    • 16.2
    • 27.4
    • 3.7
    • 3.3
    • M18
    • 19
    • 18.2
    • 29.4
    • 3.7
    • 3.3
    • M20
    • 21.2
    • 20.2
    • 33.6
    • 4.2
    • 3.8
    • M22
    • 23.5
    • 22.5
    • 35.9
    • 4.2
    • 3.8
    • M24
    • 25.5
    • 24.5
    • 40
    • 5.2
    • 4.8
    • M27
    • 28.5
    • 27.5
    • 43
    • 5.2
    • 4.8
    • M30
    • 31.7
    • 30.5
    • 48.2
    • 6.2
    • 5.8
    • M33
    • 34.7
    • 33.5
    • 55.4
    • 6.2
    • 5.8
    • M36
    • 37.7
    • 36.5
    • 58.2
    • 6.2
    • 5.8
    • M39
    • 40.7
    • 39.5
    • 61.2
    • 6.2
    • 5.8
