JAM SCREWS

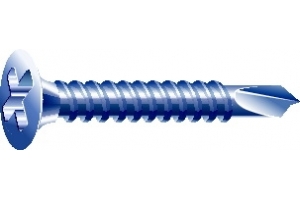

Philips Bugle Head Self-Drilling Screw (Zinc Plated)
Ordering example : zinc plated M4.2 x 25mm philips bugle head self-drilling screw (item no.: 5031008025)
Finishing | zinc plated (50310) |
---|
-

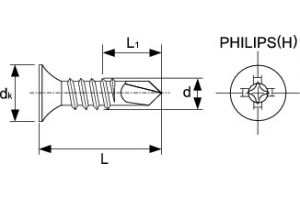

- d (diameter) Self-Drilling Screw
- Thread Pitch / mm
- dk (outer head width) / mm
- L1 / mm
- Nr. acc. to ISO
- Nr. Philips (H) recess
-
- M3.5
- 1.3
- 8.3
- 5
- #6
- 2
-
- M4.2
- 1.4
- 8.3
- 7
- #8
- 2
-
- M4.8
- 1.6
- 9.4
- 8
- #10
- 2
-
- M5.5
- 1.8
- 10.6
- 10
- #12
- 3
d (diameter) L (length) / mm |
M3.5 | M4.2 | M4.8 | M5.5 |
16 | 06016 | 08016 | 10016 | - |
19 | 06019 | 08019 | 10019 | 12019 |
25 | 06025 | 08025 | 10025 | 12025 |
32 | 06032 | 08032 | 10032 | 12032 |
38 | 06038 | 08038 | 10038 | 12038 |
Special sizes and other standards on request
