JAM BOLTS

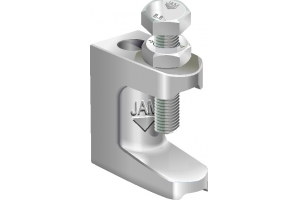

Beam Clamp
- Hot Dip Galvanized ISO 1461:1999
- Hexagon Head Bolt BS3692:2001 8.8 & Nut
- for sprinkler system, heating, ventilation and air conditioning, acoustic tubes and sanitary installation machines and steel constructions

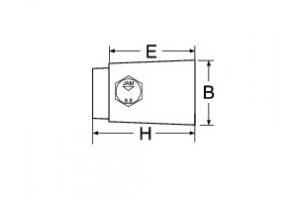

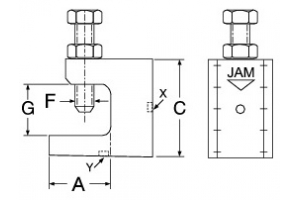

| Item No | Type |
A mm approx. |
B mm approx. |
C mm approx. |
D mm approx. |
E mm approx. |
F mm approx. |
G mm approx. |
H mm approx. |
Ultmate Load (N) |
| 4043508018 | M8 (18) | 21 | 19 | 35 |
M8 Φ9 |
35 |
M8 |
18 | 38 | 1200 |
| 4043510020 | M10 (20) | 23 | 21 | 42 |
M10 Φ11 |
41 | M10 | 20 | 44 | 2500 |
| 4043512026 | M12 (26) | 35 | 23.5 | 54 |
M12 Φ13 |
48 | M10 | 26 | 58 | 3500 |
| 4043512050 | M12 (50) | 35 | 23.5 | 78 |
M12 Φ13 |
48 | M10 | 50 | 58 | 3500 |
