ALLFA FIXINGS

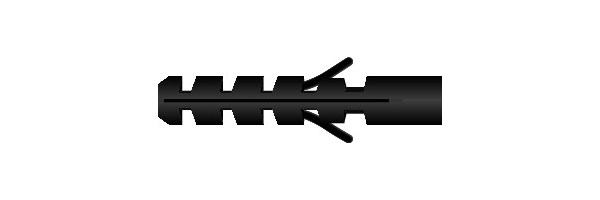

20110 Series Plastic Plug
Temperature resistance: from -40˚Celsius to +70˚Celsius
- Wallplug of high-quality nylon with screw guidance and anti-rotating-system. It can be used with several kinds of screws as woodscrews or chipboard screws. The plug works in all building materials with high densities as concrete or bricks.
Item No. | Dimension | Drill | Screw | Pieces per | Min. Drill | Pull-out results in following building materials kN: | |||
Φ x Lmm | Φmm | Φmm | Box | Cartion | Depth / mm | Concrete B25 | Bricks MZ20 |
Sand lime full brick KSV20 |
|
2011005025 | 5 x 25 | 5 | 2.6-4.0 | 100 | 10,000 | 30 | 1.3 | 1.0 | 0.8 |
2011006030 | 6 x 30 | 6 | 3.5-5.0 | 100 | 10,000 | 35 | 2.1 | 1.6 | 1.0 |
2011007030 | 7 x 30 | 7 | 4.0-5.5 | 100 | 5,000 | 40 | 2.4 | 1.7 | 1.4 |
2011008040 | 8 x 40 | 8 | 4.5-6.5 | 100 | 5,000 | 50 | 2.8 | 1.9 | 1.7 |
2011010050 | 10 x 50 | 10 | 6.0-8.0 | 50 | 2,500 | 60 | 5.1 | 2.9 | 2.8 |
2011012060 | 12 x 60 | 12 | 8.0-10.0 | 25 | 1,250 | 70 | 6.4 | 3.9 | |
2011014070 | 14 x 70 | 14 | 10.0-12.0 | 20 | 1,000 | 85 | 9.7 |
