ALLFA FIXINGS

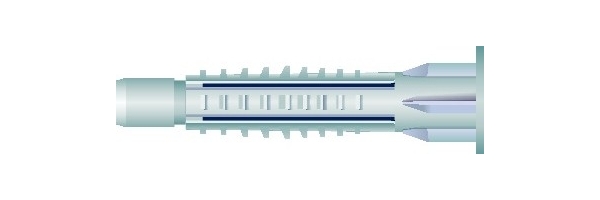

21100 Series Mega Plug without Flange
- Temperature resistance: from -40˚Celsius to +70˚Celsius
- Wallplug with flange, made of special plastic. In solid materials the plug spreads; in hollow materials or cavity materials the plug forms a knot and is suitable for almost all applications.
- Suitable for application with wood or chipboard screws. The flange prevents the plug from penetration in too deep into the drill hole.
Item No. | Dimension | Drill | Screw | Pieces per | Min. Drill | Pull-out results in following building materials kN: | |||
Φ x Lmm | Φmm | Φmm | Box | Cartion | Depth / mm | Concrete B25 | Hollow bricks |
Light concrete G4 |
|
2110006040 | 6 x 40 | 6 | 4.0-5.0 | 100 | 4,000 | 45 | 1.0 | 0.7 | 0.3 |
2110008050 | 8 x 50 | 8 | 5.0-6.0 | 100 | 2,000 | 60 | 1.6 | 1.2 | 0.6 |
2110010060 | 10 x 60 | 10 | 6.0-7.0 | 50 | 1,000 | 70 | 1.9 | 1.3 | 1.1 |
Example of application
Attention:The length of the screw has to be chosen in that way, that the screw penetrates the plug by it's own diameter. |
Example: thickness of fixed object : 20 mm |
plug Ø 6 mm - length of plug : 40 mm |
1 x screw Ø : 5 mm |
|
min. length of screw : 65 mm |
Recommended security coefficient : 5 |
