JAM FIXINGS (Anchor)

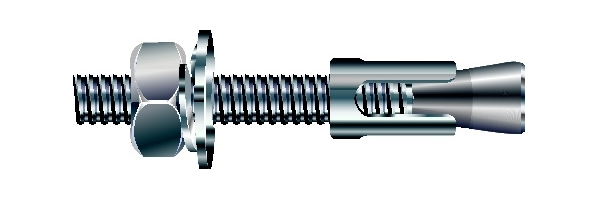

JAM-UC Undercut Anchor (A2/304 Stainless Steel)
Features
• High Loading Capacity
Shallow Depth of Embedment
Base Material
• Granite
The data shown below is guide for preliminary design purpose. Note that natural granite properties vary. It is recommended that test are executed on project base to determine the capacities of JAM-UC Undercut Anchors for each particular application.
| Item no | 2010906057 |
| Anchor Size | 1/4" |
| Anchor Length | 2-1/4" |
| Embed Depth | 7/8" |
| Drill Bit | 3/8" |
| Min. Granite Thickness | 30mm |
| Edge Distance | 50mm |
| Spacing of Two Anchors | 100mm |
| Tightening Torque | 15Nm |
|
Ultimate load
|
10.5kN |
| Factor of Safety | 3 |
| Recommended load (Tensile) | 3.5kN |
| Recommended load (Shear) | 3kN |
SAFE AND RELIABLE ANCHORS FOR GRANITE
A Reliable, Fast and Economical anchorage system into granite panel is born now.
No more adhesives, No more limits on back anchors. The JAM-UC Undercut Anchor is a totally mechanical faster
assembly that provides uncommonly high structural capacity for granite panel anchorage.The convenient drilling and
setting method make your installation become safe and easy.
